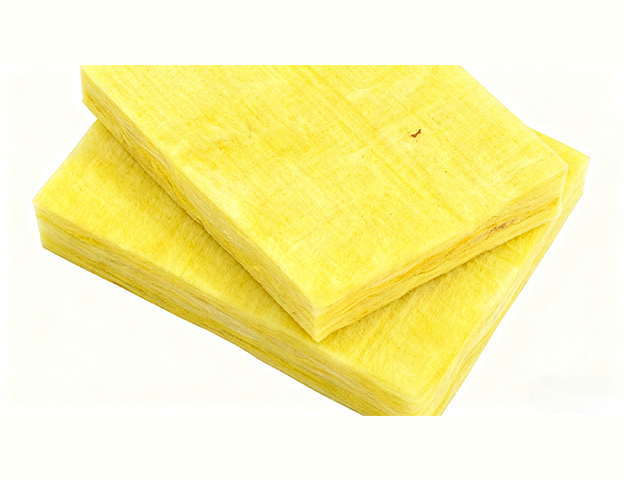

Rock Wool Insulation for Cold Storage and Refrigeration Facilities

Introduction

In the modern world of temperature-controlled storage and food preservation, insulation plays a critical role in maintaining energy efficiency and product quality. Among various insulation materials available, rock wool has emerged as one of the most effective solutions for cold storage and refrigeration facilities. This comprehensive guide explores the properties, benefits, installation methods, and applications of rock wool insulation in cold environments.

Understanding Rock Wool Insulation

Composition and Manufacturing Process

Rock wool, also known as mineral wool or stone wool, is an inorganic fibrous material produced by melting natural basalt rock or slag at temperatures around 1,600°C (2,912°F). The molten material is then spun into fine fibers using a spinning wheel or similar technology, creating a wool-like structure. During production, binders are added to help the fibers adhere together, and sometimes water-repellent oils are incorporated to enhance moisture resistance.

The manufacturing process results in a material with excellent thermal properties while being non-combustible and chemically inert. Unlike organic insulation materials, rock wool doesn't support mold growth or provide nourishment for pests, making it particularly suitable for food storage applications.

Physical Properties

Rock wool insulation possesses several key physical characteristics that make it ideal for cold storage applications:

- Thermal Conductivity: Typically ranging between 0.034 to 0.044 W/(m·K), depending on density and fiber orientation

- Density: Varies from 30 kg/m³ to 200 kg/m³ for different applications

- Fire Resistance: Can withstand temperatures up to 1,000°C (1,832°F) without melting

- Sound Absorption: Excellent acoustic properties due to its fibrous structure

- Compressive Strength: Higher-density products can withstand significant loads

- Dimensional Stability: Maintains shape and performance over wide temperature ranges

Advantages of Rock Wool in Cold Storage Applications

Superior Thermal Performance

The primary function of any cold storage insulation is to minimize heat transfer between the interior and exterior environments. Rock wool's low thermal conductivity ensures effective resistance to heat flow, maintaining stable interior temperatures while reducing energy consumption. The material's performance remains consistent even at sub-zero temperatures, unlike some synthetic foams that may degrade in extreme cold.

Moisture Resistance and Vapor Control

Cold storage facilities face significant challenges with moisture management due to the temperature differential between the interior and exterior environments. Rock wool's hydrophobic properties, when properly treated, help resist water absorption. Unlike some insulation materials that lose effectiveness when wet, rock wool maintains much of its insulating value even when exposed to moisture.

For optimal performance in cold storage applications, rock wool should be installed with appropriate vapor barriers to prevent condensation within the insulation layer. The material's breathability allows any incidental moisture to escape, preventing long-term damage.

Fire Safety

Cold storage facilities often contain flammable refrigerants and store combustible materials. Rock wool's inherent non-combustibility provides critical fire protection, helping to contain potential fires and protect the building structure. This property is particularly valuable in facilities storing high-value goods or located in urban areas with strict fire safety regulations.

Acoustic Benefits

The dense, fibrous structure of rock wool provides excellent sound absorption, reducing noise from refrigeration compressors, forklifts, and other equipment common in cold storage facilities. This contributes to a better working environment and may help facilities comply with local noise regulations.

Durability and Longevity

Rock wool doesn't degrade over time like some organic insulation materials. It resists settling, maintaining its R-value throughout the life of the building. The material is also resistant to rodents and insects, which can be problematic in food storage environments.

Environmental Considerations

As a natural material made from abundant volcanic rock, rock wool has a relatively low environmental impact compared to some synthetic alternatives. Many rock wool products contain significant recycled content (both pre-consumer and post-consumer), and the material itself is recyclable at the end of its service life. Its durability means it doesn't need frequent replacement, reducing long-term environmental impact.

Installation Methods for Cold Storage Facilities

Wall Applications

In cold storage wall systems, rock wool is typically installed between metal or concrete structural elements. The insulation can be friction-fit between studs or secured with mechanical fasteners. For optimal performance:

1. Install a continuous vapor barrier on the warm side of the insulation

2. Ensure tight joints and proper sealing around penetrations

3. Use appropriate thickness based on climate conditions and desired R-value

4. Consider double-layer installations for very low-temperature applications

Ceiling and Roof Systems

Cold storage ceilings require special attention as warm air rises and can create significant heat gain at the top of the facility. Rock wool can be installed:

- As part of a built-up roof system

- In suspended ceiling applications

- As insulation for refrigerated ceiling panels

Proper support is crucial to prevent sagging over time, especially in high-humidity environments.

Floor Insulation

For refrigerated warehouses with temperature-controlled floors, rock wool provides excellent compressive strength to withstand heavy loads from pallet jacks and forklifts. Installation typically involves:

1. A vapor barrier below the insulation

2. High-density rock wool boards

3. A protective layer (often concrete) above the insulation

4. Proper edge detailing to prevent thermal bridging

Pipe and Duct Insulation

Rock wool pre-formed pipe sections and flexible wraps provide effective insulation for refrigeration lines and air distribution systems. Key installation considerations include:

- Proper sizing to ensure complete coverage

- Adequate vapor barrier application

- Secure fastening to prevent movement

- Protection from physical damage in high-traffic areas

Design Considerations for Optimal Performance

Thermal Bridging

Cold storage facilities must address thermal bridging—areas where heat can bypass the insulation through more conductive materials. Common bridges include:

- Structural framing members

- Wall and roof penetrations

- Door and window frames

- Floor edges

Strategies to minimize bridging include:

- Using thermal break materials

- Designing continuous insulation layers

- Installing rock wool with proper coverage over all structural elements

Air Tightness

Even the best insulation can't compensate for air leakage. Cold storage designs should incorporate:

- Carefully sealed vapor barriers

- Gasketed doors and access points

- Properly flashed wall-to-roof transitions

- Attention to detail around all penetrations

Condensation Control

Proper vapor retarder selection and placement are critical to prevent moisture accumulation within the wall assembly. The general rule is to place the vapor barrier on the warm side of the insulation, which in cold storage means the exterior face of the insulation.

Fire Protection Requirements

While rock wool itself is non-combustible, the overall wall assembly must meet local fire codes. This may influence:

- Insulation thickness

- Facing materials

- Compartmentalization strategies

Maintenance and Long-Term Performance

Inspection Protocols

Regular inspections should check for:

- Damage to vapor barriers

- Signs of moisture intrusion

- Physical damage to insulation

- Thermal imaging to identify cold spots

Repair Procedures

When damage occurs:

- Remove and replace wet insulation

- Repair vapor barriers with compatible materials

- Ensure proper sealing of all repairs

- Document all maintenance for future reference

Expected Service Life

With proper installation and maintenance, rock wool insulation in cold storage facilities can last the lifetime of the building—often 30 years or more. Unlike some materials that degrade over time, rock wool maintains its thermal performance indefinitely unless physically damaged or compromised by moisture.

Comparison with Alternative Insulation Materials

Polyurethane/Polyisocyanurate Foam

While foam boards offer slightly better R-values per inch, they:

- Are combustible

- May off-gas in a fire

- Can degrade over time

- Typically cost more than rock wool

Expanded Polystyrene (EPS)

EPS is lightweight and inexpensive but:

- Has lower fire resistance

- Can be damaged by some refrigerants

- Is susceptible to rodent damage

- Offers less sound attenuation

Extruded Polystyrene (XPS)

XPS has good moisture resistance but:

- Is more expensive than rock wool

- Has environmental concerns regarding blowing agents

- Lacks the fire resistance of mineral wool

Fiberglass

Similar in some ways to rock wool but generally:

- Less resistant to moisture

- Lower fire ratings

- More prone to settling over time

- Less durable in high-traffic areas

Cost Considerations

Initial Investment

Rock wool typically costs less than high-performance foam boards but more than basic fiberglass. However, the total cost must consider:

- Material costs

- Installation labor

- Long-term energy savings

- Maintenance requirements

- Potential insurance savings due to fire resistance

Life Cycle Cost Analysis

When evaluating over a 20-30 year period, rock wool often proves more economical than alternatives due to:

- Consistent thermal performance

- Minimal maintenance needs

- Energy efficiency maintained over time

- Durability in harsh environments

Regulatory Compliance and Standards

Rock wool products for cold storage must meet various international standards, including:

- ASTM standards for thermal performance

- Building code requirements for fire safety

- Food safety regulations where applicable

- Environmental regulations regarding material content

Proper installation should follow:

- Manufacturer's guidelines

- Local building codes

- Industry best practices

- Any specific facility requirements

Emerging Trends and Innovations

High-Density Products

New formulations offer increased compressive strength for heavy-load applications while maintaining excellent thermal performance.

Enhanced Moisture Resistance

Advanced hydrophobic treatments improve performance in high-humidity environments common to cold storage.

Sustainable Manufacturing

Process improvements continue to reduce the environmental impact of production while increasing recycled content.

Integrated Systems

Some manufacturers now offer complete wall and roof systems incorporating rock wool with optimized vapor barriers and structural components.

Conclusion

Rock wool insulation offers an exceptional combination of thermal performance, fire safety, moisture resistance, and durability that makes it ideally suited for cold storage and refrigeration facilities. Its natural composition and long service life provide both economic and environmental benefits, while its versatility allows for application in walls, roofs, floors, and around piping systems.

When properly specified and installed with attention to vapor control and thermal bridging, rock wool insulation can significantly contribute to the energy efficiency and operational reliability of cold storage facilities. As the demand for temperature-controlled storage continues to grow globally, rock wool remains a proven, high-performance solution that meets the stringent requirements of these specialized environments.

For facility managers, designers, and builders, understanding the properties and proper application of rock wool insulation is key to creating cold storage spaces that are energy-efficient, code-compliant, and capable of maintaining precise temperature control over decades of service.
